Magnetic Particle Testing
our products
Magnetic Particle Testing Equipment
We supply and deal in Magnetic Particle Testing Equipment for catching surface and near-surface defects that are easy to miss with the naked eye. Our EECIFLUX range spans yokes of every size — from the Kranti Kit and EF-1Y through the EF-9Y, plus permanent magnetic options — alongside portable and mobile power sources, multidirectional and horizontal bench units, and the consumables, demagnetizing coils, and test blocks that complete the process. Whether you're running quick spot checks or high-volume production inspection, we've got equipment scaled to match. Tell us the size and pace of your operation, and we'll help you put together a setup that actually fits.

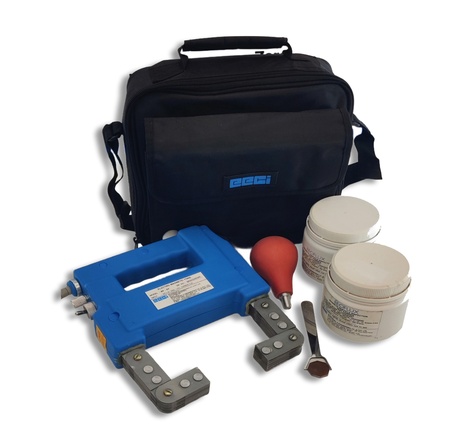

EECIFLUX KRANTI KIT
- Comprehensive inspection kit designed for Magnetic Particle Inspection (MPI) applications.
- Includes high-quality components for reliable and consistent inspection performance.
- Portable design provides easy transportation and convenient use at different inspection sites.
- AC/DC dual functionality supports versatile magnetic particle inspection requirements.
- Strong and rugged construction provides enhanced operator safety and durability.
- High-sensitivity design helps detect relevant surface and near-surface discontinuities effectively.
- Ergonomic construction enables comfortable handling during inspection operations.
- Supplied with a convenient carry case for easy transportation and storage.
- Suitable for weld, casting, aerospace, and automotive component inspections.
- Ideal for new MPI users and training institutes, with Made-in-India manufacturing and pan-India sales and service support.

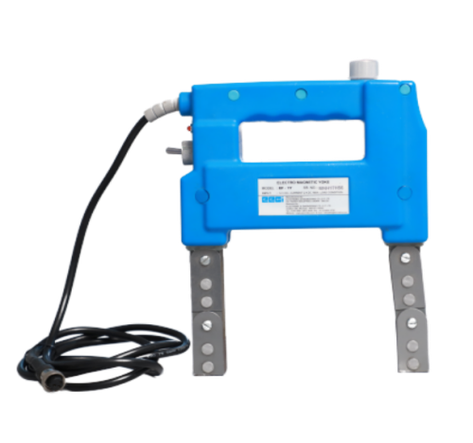

BATTERY-POWERED YOKE
- DC Magnetisation operated on rechargeable battery
- No mains supply required
- Portable for magnetic particle inspection
- Can be used for in-plant structures as well as fieldwork
- Battery pack housed in a case with shoulder strap, battery charger & yoke carrying bag are provided
- Complies with various international specifications
- The battery is suitable for high ambient temperature
- Articulating and double-jointed legs contour easily to any shape to assure good contact
- Operating Voltage – 12 V DC

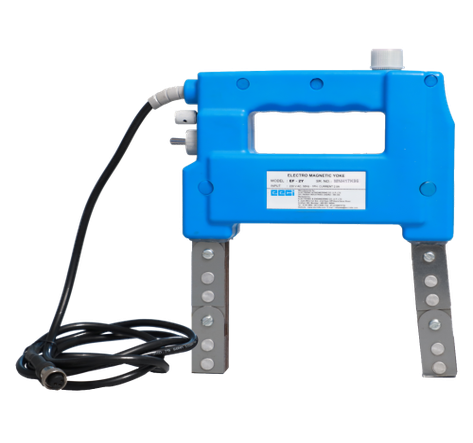

AC/HWDC DUAL MAGNETIZATION YOKE
- Portable for Magnetic Particle Inspection
- Delivers AC and HWDC for surface or subsurface flaw detection
- Articulating and double-jointed legs contour easily to any shape to assure good contact
- Handy and lightweight
- Safe for operators
- Strong and rugged construction
- Sensitive for sub-surface cracks
- The built standard for continuous inspection
- Operating Voltage –
220 VAC, 50Hz, 1 Phase (EF-2Y)
110 VAC, 50Hz, 1 Phase (EF-3Y)

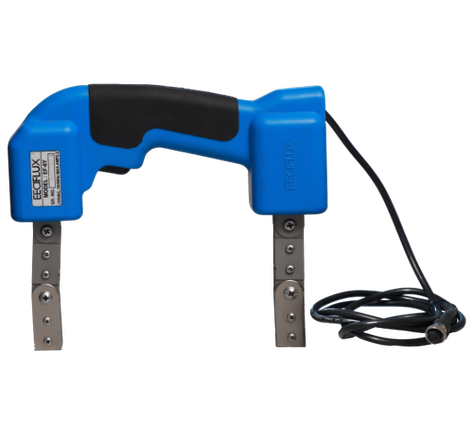

EF-6Y/7Y
- AC magnetic yoke designed for Magnetic Particle Inspection (MPI) applications.
- Lightweight construction weighing only 2 kg for easy handling.
- Soft grip and angled construction help reduce operator fatigue during inspection.
- Optimized magnetizing control location provides convenient operation.
- Exceeds ASTM E709 lift-weight requirements for magnetic particle testing.
- Strong and rugged construction provides dependable performance.
- Additional safety features are incorporated for safer inspection operations.
- EF-6Y model operates with a 230 VAC, 50/60 Hz input supply.
- EF-7Y model operates with a 110 VAC, 50/60 Hz input supply.
- Ergonomic design enables better positioning and comfortable use during MPI inspections.

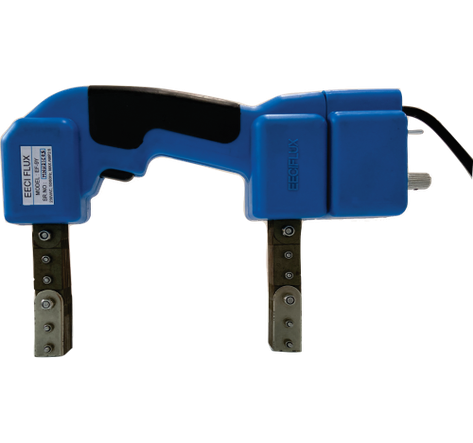

EF-9Y
- Advanced magnetic particle inspection yoke designed for reliable non-destructive testing.
- Provides both AC and HWDC magnetization for surface and sub-surface inspection.
- Suitable for detecting surface and near-surface discontinuities in ferromagnetic components.
- Ergonomically designed for comfortable handling during inspection operations.
- Optimized controls provide simple and convenient operation for inspectors.
- Durable and rugged construction ensures reliable performance in demanding industrial environments.
- Designed with safety in mind for dependable inspection operations.
- Built with an optimal duty cycle for efficient and consistent testing.
- Conforms to ASTM E709 requirements for magnetic particle testing.
- Also conforms to ASTM E1444 standards for magnetic particle inspection applications.

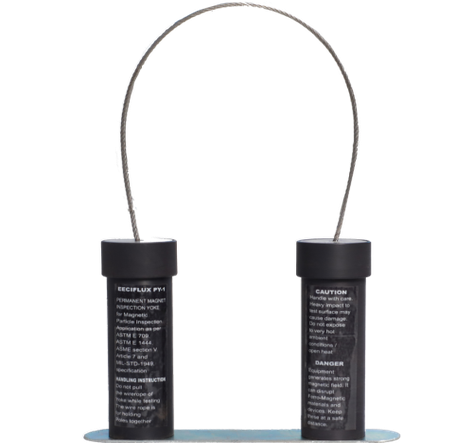

PY-1
- For magnetic particle inspection applications as per various international specifications such as ASTM E 709, ASTM E 1444, ASME Sec V, ASME Sec 7, MILSTD1949
- Rugged construction for reliable magnetic inspection
- Light Weight: Weighs only 1.1 Kg
- Requires no mains electric supply
- Easy to use, simple, and highly economical as it requires no power
- Lifting Capacity: 18 Kg at 100 mm pole spacing
- Capable of Testing with both Dry and Wet methods of Powder applications
- Ideal Inspection tool for Petrochemical Industries, Chemical Industries

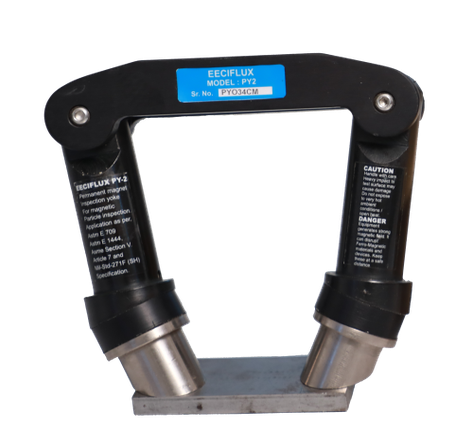

Permanent Magnetic Yoke
- Meets International Standards’ ASME SEC V ART 7, BS6072-1981, MIL-STD-271F(SH) for Magnetic Particle Inspection application.
- Rugged Construction for Reliable Magnetic Inspection.
- Easy to use, Simple & Highly Economical.
- No power requirements.
- Lifting Capacity: Above 18 Kg, At 100mm pole spacing.
- Suitable for both Dry & Wet applications.
- Ideal in Petrochemical, Off Shore, Chemical Industries, etc.
- Small, Reliable & Strong Magnet with no requirement of Re-magnetisation.
- Durable and for long-life use.

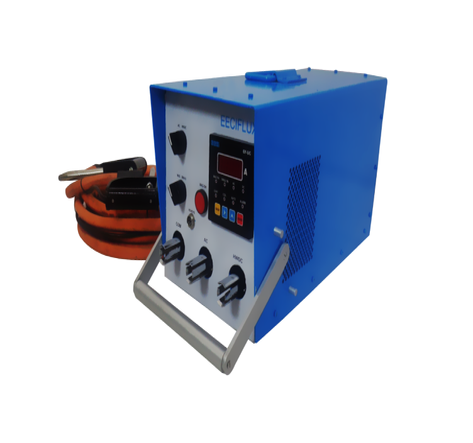

Portable Power Sources
- Max duty cycle : 0.5 Sec ON & 5 sec OFF.
- AC and HWDC output.
- Available in EF 1500, EF 1500-2 & EF 2000 Amps rating models.
- Equipped with a thermal overload relay to prevent failures of components.
- Thyristorized stepless solid-state current control.
- Quick disconnect type of prod connections.
- Rugged construction for reliable magnetic inspection.
- Compact, lightweight & portable.
- Can detect surface as well as sub-surface defects.
- Standard built equipment for continuous inspection.

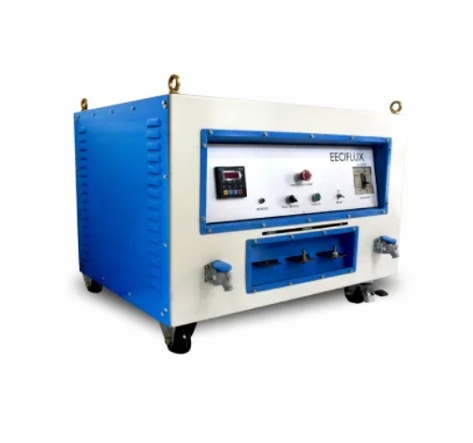

Mobile Power Units
- Unit is suitable for working on AC & HWDC as test currents.
- Rugged construction for reliable magnetic inspection.
- Heavy-duty caster wheels make it possible to carry unit anywhere on the shop floor.
- Detects surface as well as subsurface defects.
- Capable of detecting defects in all directions using prods, Central Conductor, or 5 turn coil.
- Inspection can be done with dry as well as the wet method.
- Equipment confirms to international specifications.
- Thyristorised self-regulating current control with closed-loop feedback for compensation of voltage fluctuations, electrical resistance & prod placement.
- Thermal overload relay switch.
- Remote control option for convenience & productivity.

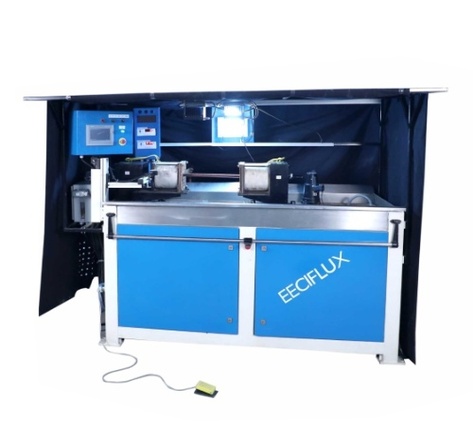

EECIFLUX Multidirectional Horizontal Bench Unit
- Advanced multidirectional horizontal bench unit designed for Magnetic Particle Inspection (MPI).
- Smart digital control and display meter enables easy current setting and closed-loop current feedback.
- Magnetization ON time can be varied from 0.5 seconds up to a maximum of 5 seconds.
- Module-type thyristor-based solid-state circuitry provides reliable and efficient operation.
- Independent variable current controls with keypad entry allow precise inspection settings.
- Supports independent Contact, Coil and Flux Flow current type selection for versatile inspection.
- AC-mode demagnetization is provided by gradually reducing the current to zero.
- Features audible and visual low-current alarm indication for enhanced operating safety.
- Stainless-steel tank with an innovative pump system provides efficient fluid delivery and agitation with easy maintenance access.
- Robust heavy-duty construction enables continuous inspection and helps detect surface as well as subsurface defects in any direction in a single shot.

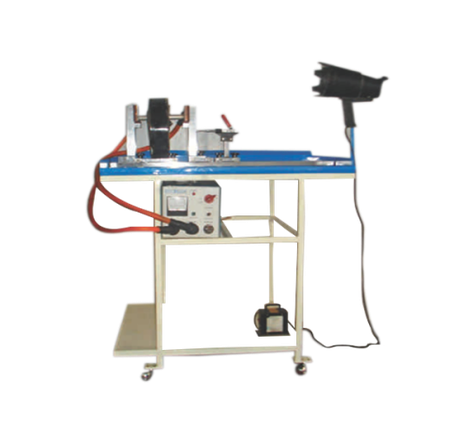

EECIFLUX Mini Bench Units
- Suitable for inspecting small component.
- Economical priced compact unit ideal for batch inspection.
- Two-axis magnetization.
- 2000 Amps AC/HWDC current.
- Fixed Headstock with rail mounted hand operated tailstock.
- Accepts components of maximum 1000 mm length and 30 kg weight.
- Plug in type power source.
- A range of optional accessories available to extend versatility of equipments.
- Available in standard as well as customized models.
- Designed and developed as per the specifications of clients.

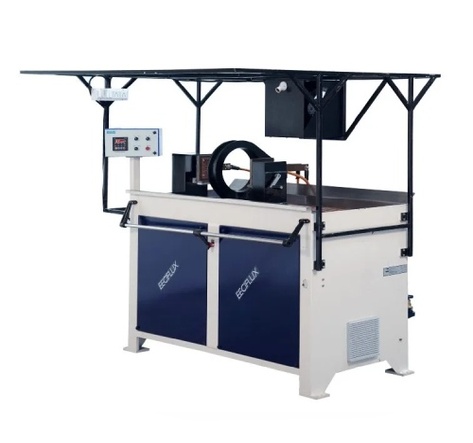

EECIFLUX Horizontal Bench Units
- Contact shot for circular magnetization and coil shot for longitudinal magnetization of parts.
- Provides 4500 Amps AC and 5000 Amps FWDC output.
- Fabricated M.S. frame with splash guard and wood grill assembly.
- SS304 stainless-steel circulation tank with turbulence agitation system, mono-block pump and hand nozzle.
- Rugged construction with in-built power source and infinitely variable self-regulating current control.
- 5-turn, 300-mm diameter base-mounted coil for longitudinal magnetization.
- Pneumatically operated headstock with footswitch and rail-mounted hand-operated tailstock.
- Analog ammeters with calibration facility and control panel with push-bar assembly.
- In-built AC decay demagnetization facility with AC/FWDC selector switch.

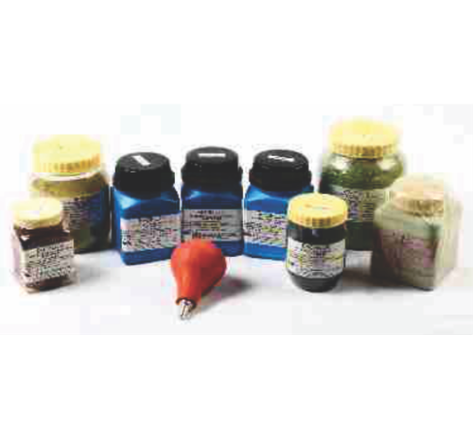

MPI Consumables
- Economical for use.
- Less effect on the skin.
- Suitable for smooth and rough surfaces.
- Highly sensitive for detecting hairline cracks.
- Excellent wetting characteristics for wet application.
- Available in small and convenient packing.
- DP-B black magnetic powder for dry application, available in 1 Kg packing.
- DP-R red magnetic powder for dry application.
- WP-B black and FP-W fluorescent magnetic powders for water-based wet application.
- OP-R, OP-B, FP-OS and FP-OC magnetic powders for oil-based wet applications.

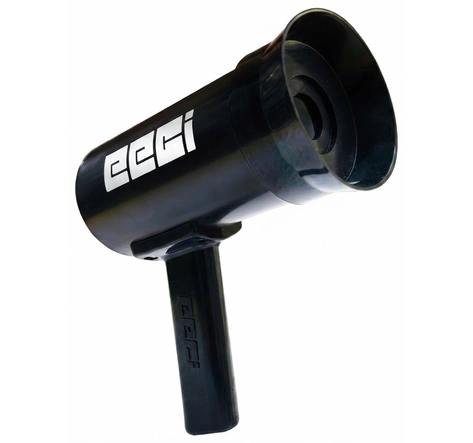

EECIFLUX UV-10
- Compact handheld inspection lamp.
- Lightweight design for easy handling.
- Ergonomic grip for comfortable use.
- Rugged black housing for durability.
- Wide front reflector for focused illumination.
- Suitable for close-up inspection work.
- Easy to carry and operate.
- Designed for industrial inspection applications.
- Convenient trigger-style handle design.
- Reliable EECI inspection accessory.

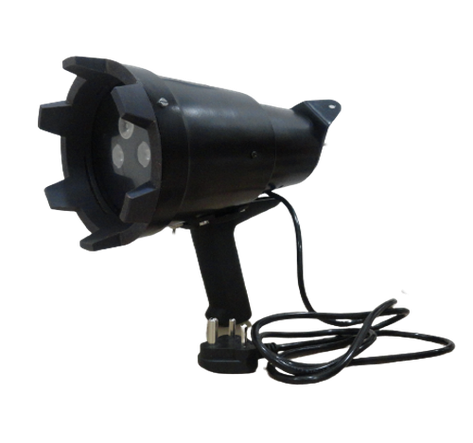

BL-LED 5K
- Ultra-Hi-Flux UVA-LED inspection lamp designed for Magnetic Particle Inspection applications.
- Features two UVA-LEDs along with a white light LED for quick switching between fluorescent inspection and flaw location.
- Broad beam provides wide inspection coverage for efficient testing.
- Suitable for both handheld and in-line inspection applications.
- Long operating life helps provide reliable performance during inspection operations.
- Low power consumption makes the lamp energy efficient.
- Built-in fan helps support reliable operation during extended use.
- Rubber handle provides a comfortable and secure grip for operators.
- Tough aluminum housing provides ruggedness for industrial inspection environments.
- Suitable for use in closed spaces such as pipelines, vessels and closed containers.

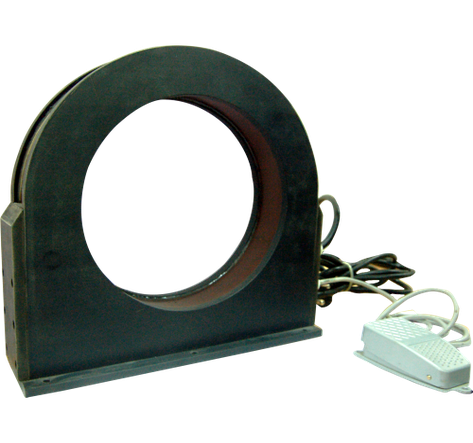

Demagnetizing coil
- Designed for effective demagnetization of components after magnetic particle inspection.
- Helps eliminate residual magnetism remaining in workpieces after magnetization.
- Suitable for electro-magnetic crack testing applications.
- Helps prevent negative effects caused by residual magnetic fields during later processing.
- Portable AC coil suitable for magnetic particle inspection applications.
- Can be used with both dry powder and wet fluorescent inspection media.
- Constructed from strong black glass-filled nylon material.
- Press-to-ON and press-to-OFF footswitch for convenient operation.
- Supplied with a 3-metre-long power cord and 400 mm × 100 mm flat base.
- Compact, lightweight design with no moving parts and minimal maintenance requirements.

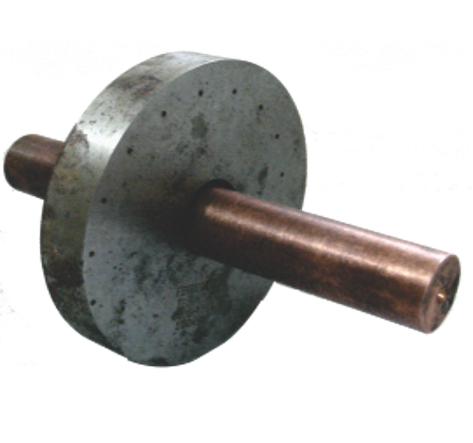

Test Blocks
- BTP BHEL test block for prod technique.
- YTP test block for yoke technique.
- ATP test block for yoke technique as per ASTM MTU-N03.
- ATP test block as per ISO 9934.
- Pie field indicator as per ASTM E-709.
- Test blocks designed for magnetic particle inspection applications.
- Suitable for verifying and demonstrating MPI inspection performance.
- Supports testing using different magnetic particle inspection techniques.
- Suitable for inspection equipment performance checks.
- Useful for reliable calibration and verification of MPI systems.
