Radiation Monitoring Instruments
We supply and deal in Radiation Monitoring Instruments for teams and facilities where exposure tracking can't be left to chance. Our lineup covers survey meters like the DSM-10E, DSM-1T, and GSM-5 for field use, area monitors including the DZM and AGM series plus the Smart Gamma Probe for continuous facility-wide coverage, and dosimeters like the DG-5 and PD-10 for tracking individual exposure. We also carry the DCM-200mP for contamination checks. If your work involves radiography or industrial isotopes, this is the equipment that keeps safety measurable instead of assumed. Reach out and we'll help you figure out the right combination for your site.
DSM-10E Digital Survey Meter
- Rugged and compact design, thick rubber protective cover, Light weight.
- 2 in 1 Survey Meter and Dosimeter.
- Large TFT LCD with backlight for outdoor readability.
- Internal memory to store 60 hours to continuous data measurements.
- Nuclear Power Industry.
- Radiography.
- Radiation Protection.
- Environmental Survey / Health Physics Labs.
- Civil / Defense.
- Industrial.
DSM-1T Digital Survey Meter
- Rugged and compact design with thick rubber protective cover and lightweight construction.
- 2 in 1 Survey Meter and Dosimeter for radiation monitoring.
- Radiation detection for gamma and beta rays.
- Dose rate range from 0.01 mR/h to 1000 mR/h.
- Large TFT LCD with backlight for easy outdoor readability.
- Internal memory for continuous data measurement and storage.
- Designed for quick and reliable radiation dose rate and dose measurement.
- Audible and visual alarm indication for radiation levels.
- Easy menu-driven interface for simple operation.
- Compact portable design suitable for field and radiation monitoring applications.

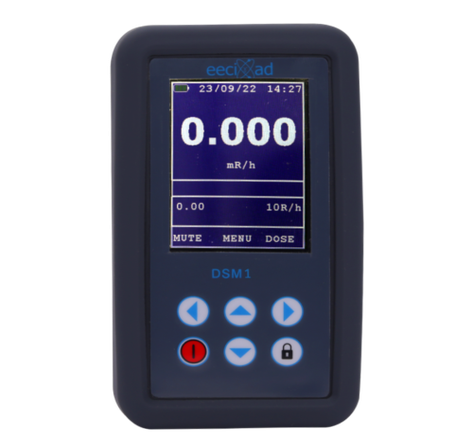

DSM-1 Digital Survey Meter
- 2-in-1 Digital Survey Meter and Dosimeter.
- Measures Gamma and X-ray radiation.
- Rugged, compact, and lightweight design.
- Thick rubber protective silicone cover for improved durability.
- Highly sensitive Energy Compensated GM Tube detector.
- Large 2.8-inch TFT LCD display with backlight for outdoor readability.
- User-configurable audio and visual alarms.
- Internal memory stores up to 60 hours of continuous radiation data.
- Date and time-stamped data logging with easy menu-driven interface.
- Micro USB communication with RadMan PC Software and up to 100 hours of operating time.

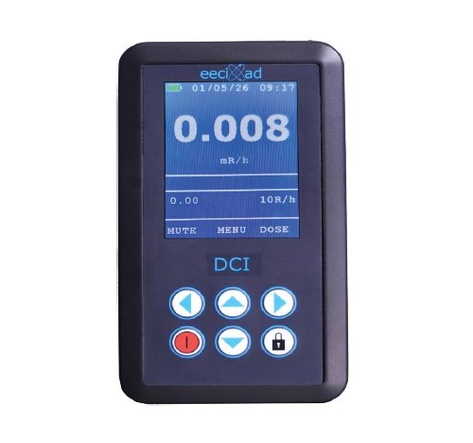

DCI-10P Digital Survey Meter
- Wide dose rate measurement range from 0.01 mR/h to 10 R/h.
- Efficiently detects Alpha, Beta, Gamma & X-ray radiation.
- Dedicated Alpha blocker for selective radiation discrimination.
- Dedicated Beta blocker for contamination analysis.
- High-sensitivity large-area Pancake GM tube detector.
- Data transfer to PC through USB Type-C communication with Radman PC Software.
- Audio buzzer and visual LED alarm indications with user-configurable alarm settings.
- Long battery operation of up to 100 hours and storage for approximately 4000 data points.
- Compact and rugged industrial design with a bright 2.8-inch TFT LED backlit display.
- Ideal for field surveys, radiation monitoring and contamination monitoring applications.

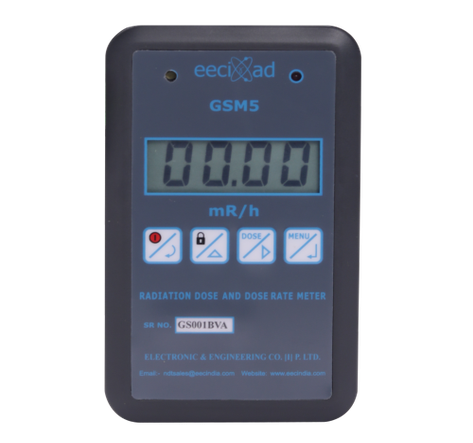

EECIRAD GSM-5 Radiation Survey Meter
- Pocket-size, compact and lightweight radiation survey meter and dosimeter.
- 2-in-1 Survey Meter and Personal Dosimeter.
- Highly sensitive Energy Compensated GM detector.
- Detects Gamma and X-ray radiation.
- Displays both Dose Rate and Accumulated Dose.
- Ultra-long battery life of up to 1,500 hours.
- User-configurable audible, visual and vibration alarms.
- Silent vibration alarm for noisy environments.
- Simple and intuitive operation with low power consumption.
- Rugged ABS plastic construction for reliable field use.
Dose & Dose Rate Survey Meter
- Portable, rugged and handheld design for reliable field operation.
- Dose and dose rate measurements up to 10 R/h.
- 2-in-1 Survey Meter and Dosimeter for dose rate and accumulated dose measurement.
- Gamma and X-ray detection using an energy-compensated GM tube.
- Stores up to 60 hours of continuous dose rate data.
- Large 2.8-inch colour TFT LCD with backlight for clear readings.
- PC interface for data logging, analysis and reporting.
- Headphone jack for convenient audio alarm monitoring.
- Audible and visual alarms for dose rate, accumulated dose and fault conditions.
- Up to 100 hours of continuous operation with four AAA batteries.

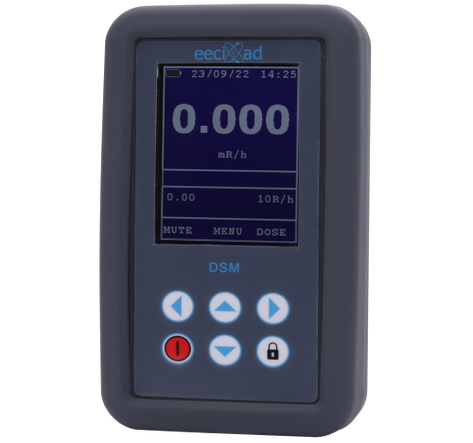

DSM-1E Digital Survey Meter
- Rugged and compact design with thick rubber protective cover.
- 2 in 1 Survey Meter and Dosimeter.
- Large TFT LCD with backlight for easy outdoor readability.
- Internal memory for storing continuous dose and dose-rate measurements.
- Designed for quick and reliable Gamma and X-ray dose-rate and dose measurement.
- Separate alarm thresholds are provided for dose rate and accumulated dose.
- Easy menu-driven interface for simple and convenient operation.
- Audible and visual alarm indication through buzzer and LED.
- Stores dose and dose-rate data with date and time stamps.
- Stored data can be viewed and analyzed through PC software using USB communication.

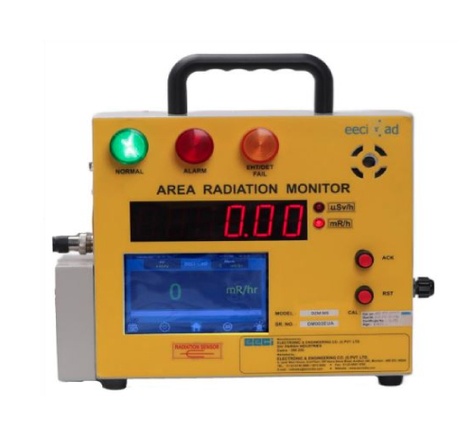

DZM 10E
- Compact and simple-to-use area radiation monitor for continuous Gamma radiation monitoring.
- Designed for area and process monitoring in nuclear laboratories, reactors and power plants.
- Uses a highly sensitive Geiger-Müller detector for reliable Gamma radiation detection.
- Displays the dose rate level of the monitored area continuously.
- Provides clear visual indication when the radiation level exceeds the preset alarm threshold.
- Built-in audio and visual alarm indication for radiation warning conditions.
- Self-contained, mains-operated unit with integrated pulse processing electronics.
- 7-segment LED and 5-inch touch-screen TFT LCD display for easy monitoring.
- Robust wall-mounting enclosure designed to provide protection against EMI/RFI and line transients.
- IP65-rated construction suitable for demanding nuclear and radiation-monitoring environments.

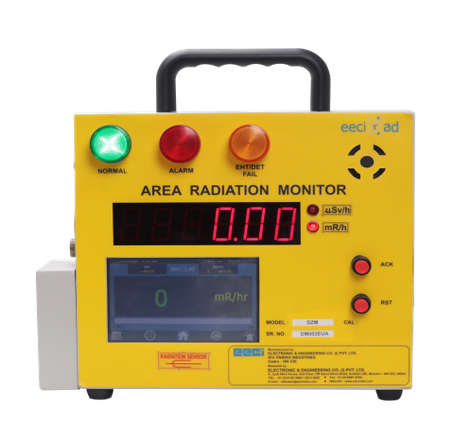

DZM 10M
- Small, self-contained area radiation monitor powered by mains supply.
- Dose rate range of 0.001 mR/h to 10 mR/h.
- Designed for continuous Gamma radiation monitoring.
- Large and vivid 7-segment display for clear radiation level indication.
- 5-inch touch-screen TFT display for easy monitoring and operation.
- Provides fault and error indication along with alarm notification.
- IP65-rated compact and rugged enclosure for reliable operation.
- Environmental and EMC compliant as per N42.17 requirements.
- Supports Modbus RTU over RS485 and TCP/IP communication protocols.
- SCADA and web-based browser monitoring capability for up to 250 instruments.

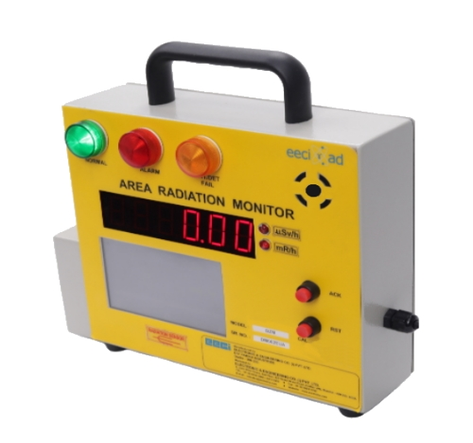

DZM 100m
- Versatile, self-contained area radiation monitor that can also be powered by mains supply.
- Dose rate range of 0.01 mR/h to 100 mR/h.
- Designed for continuous Gamma radiation monitoring.
- Large and bright 7-segment display for clear dose rate indication.
- 5-inch touch screen TFT display for convenient monitoring and operation.
- Fault and error display with alarm annunciation for reliable operation.
- Small and robust enclosure with IP-65 ingress protection.
- Complies with N42.17 environmental and EMC requirements.
- Web-based browser monitoring capability for up to 250 instruments.
- Supports SCADA-based Modbus RTU through RS485 or TCP/IP communication.

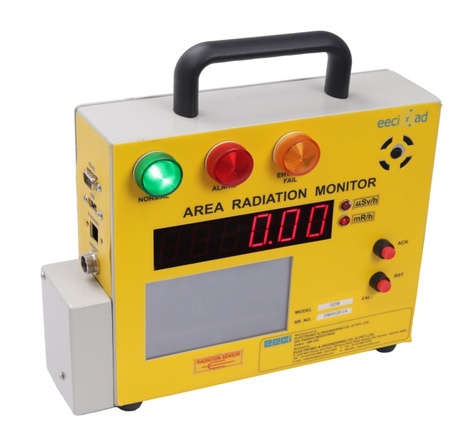

DZM 1
- Compact and self-contained area radiation monitor powered by mains supply.
- Dose rate range from 0.01 mR/h to 1000 mR/h.
- Designed for continuous Gamma radiation monitoring.
- Wide-ranging and clearly viewable 7-segment display.
- 5-inch touch-window TFT display for easy monitoring and operation.
- Fault and error indication with alarm annunciation.
- IP65 ingress protection with compact and durable case construction.
- Complies with N42.17 environmental and EMC requirements.
- Supports Modbus RTU through RS485 or TCP/IP communication.
- SCADA-based web browser monitoring for up to 250 instruments.

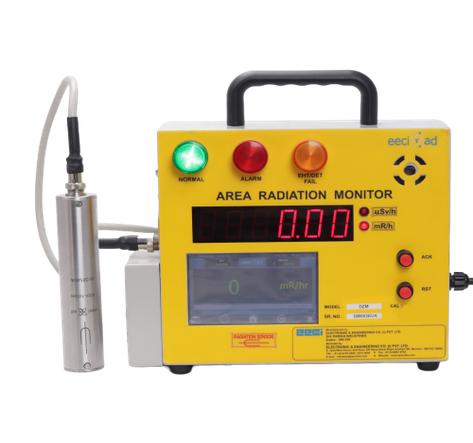

DZM M5
- Compact and simple-to-use stand-alone area radiation monitor for Gamma radiation monitoring.
- Ideally designed for area and process monitoring in nuclear laboratories, reactors and power plants.
- Completely self-contained and mains-operated unit with microcontroller-based operation.
- Uses an energy-compensated Geiger-Muller tube for reliable Gamma radiation detection.
- Displays the area dose rate level with direct-reading, auto-ranging indication.
- Provides both 7-segment LED and 5-inch touch-screen TFT LCD displays.
- Audio and visual alarm indication when the dose rate exceeds the preset threshold.
- Provides indications for detector failure, high-voltage failure and absence of radiation pulses.
- Supports RS-485 Modbus RTU, Ethernet Modbus TCP/IP, 4-20 mA and potential-free relay outputs.
- Robust wall-mounted enclosure with IP65 protection and immunity against EMI/RFI and line transients.

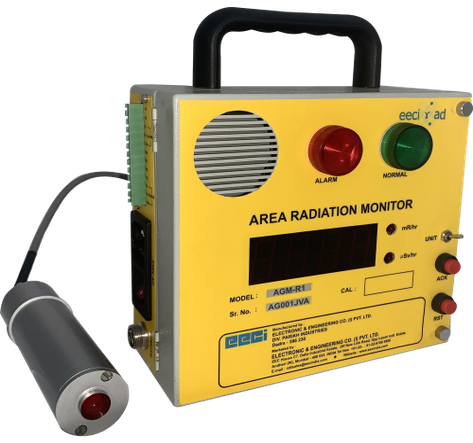

AGM100m/R100m
- Compact and reliable Area Gamma Monitor designed for continuous radiation monitoring.
- Designed to indicate low Gamma dose-rate levels in radiation-controlled working areas.
- AGM100m uses an internally mounted energy-compensated GM tube detector.
- R100m version uses an externally connected energy-compensated GM tube with a 10-meter cable.
- Dose rate range of 0.01 mR/h to 100.0 mR/h.
- Large LED display provides clear radiation-level indication from a long distance.
- Local radiation alarm annunciation with lamp indication and alarm acknowledgment.
- Provides current output corresponding to dose rate for remote monitoring.
- Two potential-free changeover relay contacts are provided for radiation and power-failure alarms.
- Suitable for radiological installations, medical facilities, nuclear plants, waste immobilization plants and other radiation-monitoring areas.

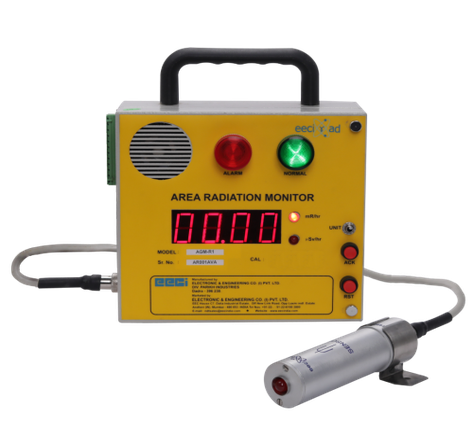

Area Gamma Monitor
- Sturdy and compact design for reliable radiation monitoring.
- Suitable for wall-mounted or bench-top installation.
- Optional battery backup available for uninterrupted operation.
- Large LED display clearly visible from a long distance.
- Designed for Gamma and X-ray radiation detection.
- Dose rate range from 0.01 mR/h to 100.0 mR/h.
- Provides local alarm annunciation with lamp indication.
- Alarm acknowledgment facility for convenient operation.
- Current output corresponding to dose rate for remote monitoring.
- Alarm and power-failure relays available for remote operation.

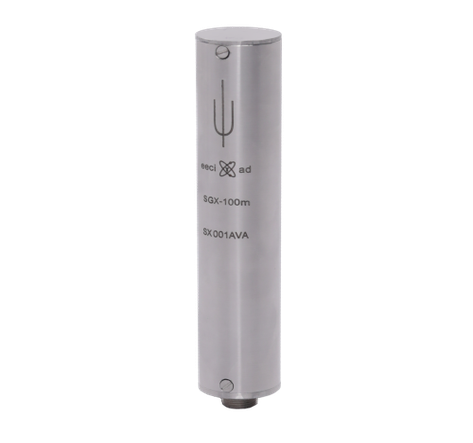

Smart Gamma Probe – SGX
- Smart Gamma Probe designed for reliable Gamma radiation measurement.
- Can be used as a stand-alone radiation monitoring probe.
- Compatible with the DZM-M5 Area Radiation Monitor.
- Suitable for remote radiation measurements.
- Rugged and durable stainless-steel housing for demanding environments.
- Designed for continuous radiation monitoring applications.
- Suitable for installation in areas where remote measurement is required.
- Compact probe design for convenient positioning near the monitoring area.
- Provides reliable radiation detection for area monitoring systems.
- Ideal for nuclear, industrial and radiation-monitoring applications.

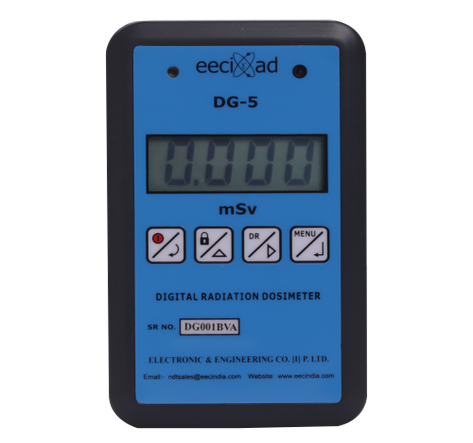

DG-5 Digital Dosimeter
- Pocket-size, compact and lightweight digital dosimeter.
- Continuous display of radiation dose and dose rate.
- Detects Gamma and X-ray radiation from 48 keV to 3 MeV.
- Built-in energy-compensated GM tube detector.
- Wide dose and dose-rate measurement range.
- Real-time audio, visual and vibration alarm system.
- Built-in vibrator provides a silent alarm in noisy environments.
- High accuracy with quick-response radiation measurement.
- Ultra-long battery life of up to 1500 hours.
- Rugged ABS plastic design suitable for field and radiation-safety applications.

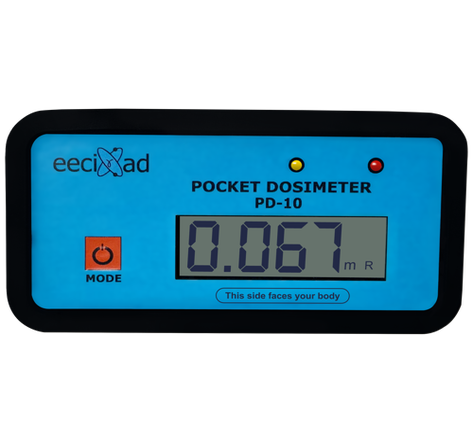

PD-10 Digital Pocket Dosimeter
- Compact and lightweight digital pocket dosimeter for personal radiation monitoring.
- Designed for continuous measurement of accumulated radiation dose.
- Provides clear digital indication of the measured radiation dose.
- Designed for Gamma and X-ray radiation monitoring.
- Features an easy-to-read display for convenient field operation.
- Audible alarm indication provides warning when the preset dose level is exceeded.
- Compact pocket-size construction makes it easy to carry during radiation work.
- Simple operation suitable for routine personal radiation protection.
- Low-power design provides reliable operation during extended use.
- Suitable for personnel working in nuclear, medical, industrial and radiation-monitoring environments.

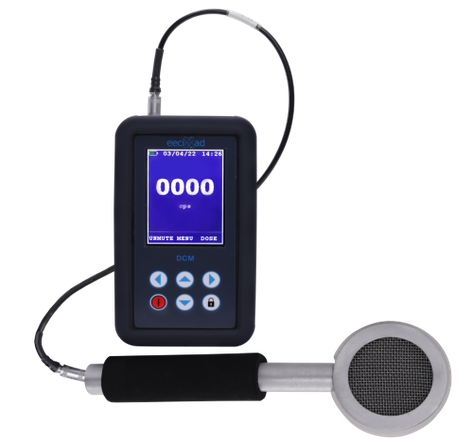

Digital Contamination Monitor – DCM 200mP
- Detects Alpha (α), Beta (β) and Gamma (γ) radiation.
- Highly sensitive Pancake GM tube based detector for accurate measurements.
- User-selectable alarm threshold for convenient radiation monitoring.
- Provides both audio and visual alarm indications.
- High-resolution TFT LCD for clear and easy readability.
- Comfortable handheld design for convenient operation.
- Sturdy construction suitable for demanding radiation-monitoring applications.
- Lightweight design makes the instrument easy to carry and use in the field.
- Suitable for contamination monitoring of surfaces and working areas.
- Designed for reliable detection and measurement of radioactive contamination.
contact
Feel free to get in touch
ANB Technologies is Hyderabad's authorised EECI distributor, supplying and servicing Ultrasonic Testing, Magnetic Particle Testing, and Radiation Monitoring instruments across Telangana and Andhra Pradesh.
